K Type Thermocouple

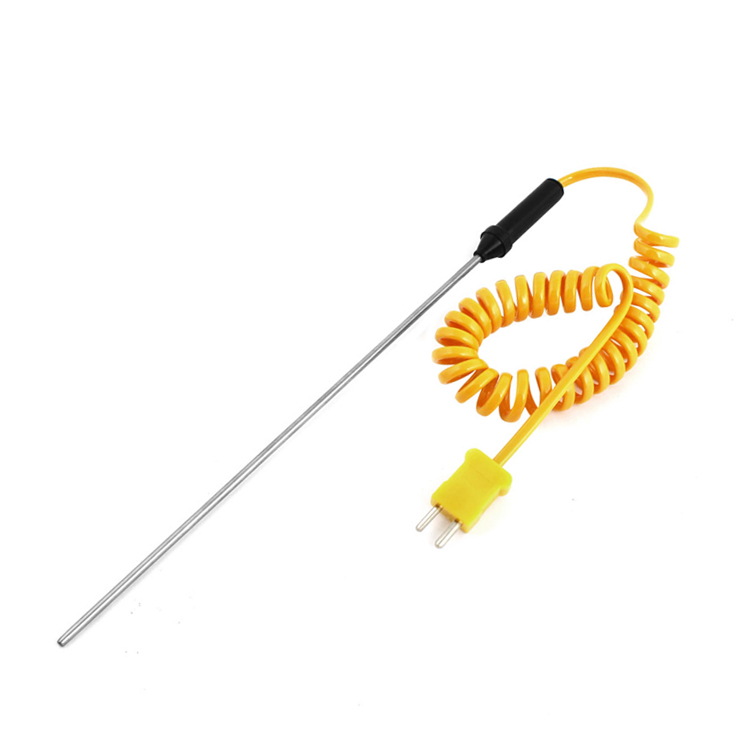

1.2M 0-500C 200mm x 3mm Probe K/J Type Temperature Range Coiled Thermocouple

K/J Type Temperature Range Coiled Thermocouple
Product description: When not in use 1.2M 0-500C 200mm x 3mm Probe K/J Type Temperature Range Coiled Thermocouple, the thermocouple wire is wound on the plug handle. When the thermocouple wire is released in actual use
INQUIRY

When not in use 1.2M 0-500C 200mm x 3mm Probe K/J Type Temperature Range Coiled Thermocouple, the thermocouple wire is wound on the plug handle. When the thermocouple wire is released in actual use, it is very convenient to use how long and how long. Note: K-type thermocouple or J-type thermocouple can be used with standard plug or high temperature plug.

1.2M 0-500C 200mm x 3mm Probe K/J Type Temperature Range Coiled Thermocouple Specifications

Temperature Range : 0 to 500 Celsius;Probe Size : 200 x 3mm/ 8" x 0.12" (L*D)
Cable Length : 1.2M / 3.9Ft;External Material : Plastic, Metal
Fork Terminal Spacing : 5.5mm/ 0.22";Color : Dark Yellow
Weight : 24g;Package Content : 1 x Thermocouple

Type	K
Model	WRN-130 230 330 430 530 191
Circle diameter	customized
Temperature range	0~+1300C
Tube material	SS310/304/316,inconel600/ceramic
Fixing	screw/flange/none
Cable	stainless/silicone/teflon
