K Type Thermocouple

K Type Pressure Spring Thermocouple Temperature sensor

K Type Pressure Spring Thermocouple Temperature sensor
Product description: K Type Pressure Spring Thermocouple Temperature sensor is mounted on the object to be tested. First tighten the connecting bolt on the object to be tested, then attach the thermocouple to the object
INQUIRY

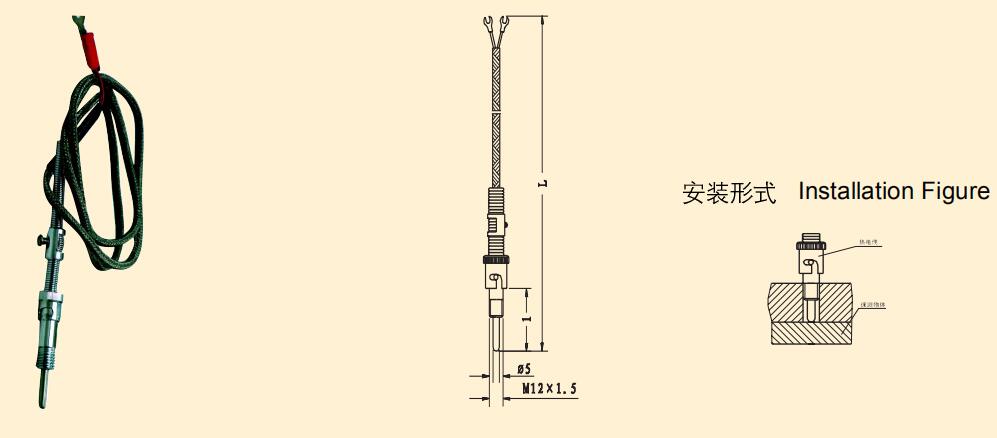

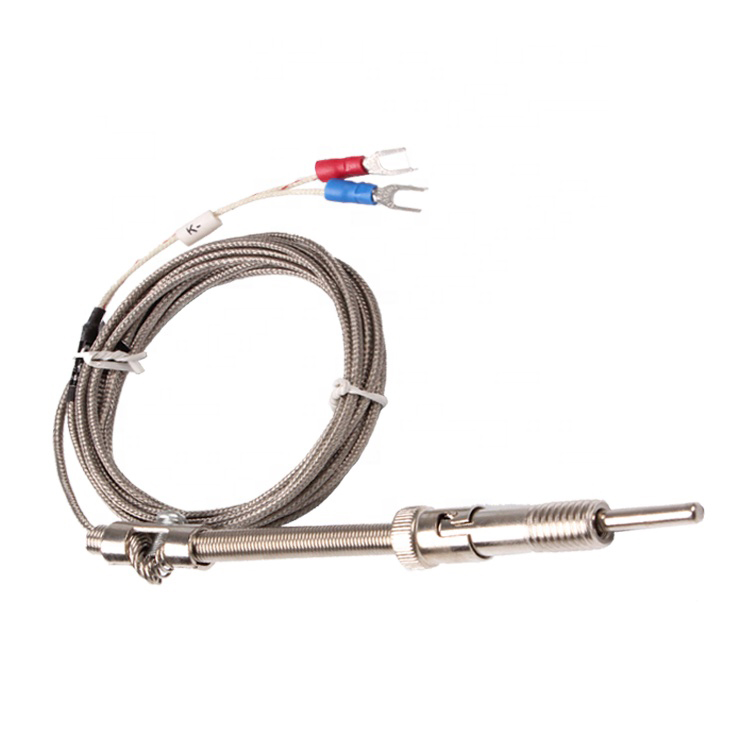

K Type Pressure Spring Thermocouple Temperature sensor is mounted on the object to be tested. First tighten the connecting bolt on the object to be tested, then attach the thermocouple to the object to be tested, tighten the ferrule screw, and finally screw the locking ferrule. The compression spring fixed thermocouple closely contacts the end of the thermocouple with the surface of the object to be tested by the compression spring to improve the reliability and accuracy of the measurement. It is used with display instruments and can directly measure the temperature in the range of 0~400 °C.

Model	SWS-K	SWS-E
Name	Compression Spring Type Thermocouple
Thermocouple Type	K type	E type
Measuring Range	0°C~600°C	0°C~400°C
Ferrule Size	M12*1.5 (Default)
Probe Diameter	Diameter 5*30mm (Default).Can be customized
Shielding Wire Length	1m~10m.Can be customized
Jacket Length	32mm (Default).Can be customized
Terminal	UT

K Type Pressure Spring Thermocouple Temperature sensor has a flexible extension wire, which can be bent freely, has a small thermal response time, and is easy to use. It is suitable for plastic extruders, textiles, food and other industries.
