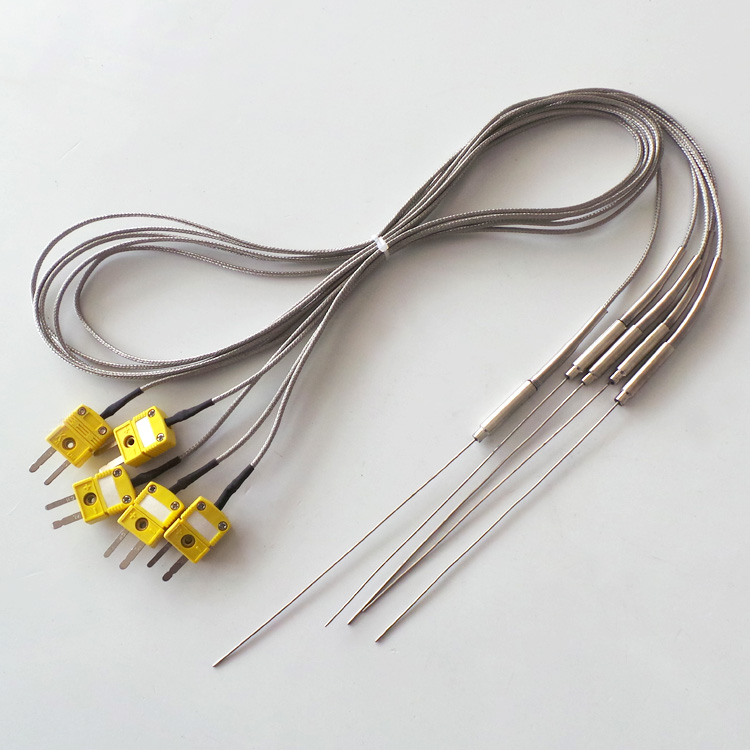

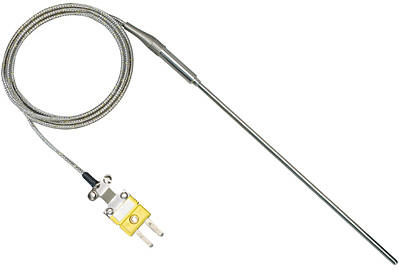

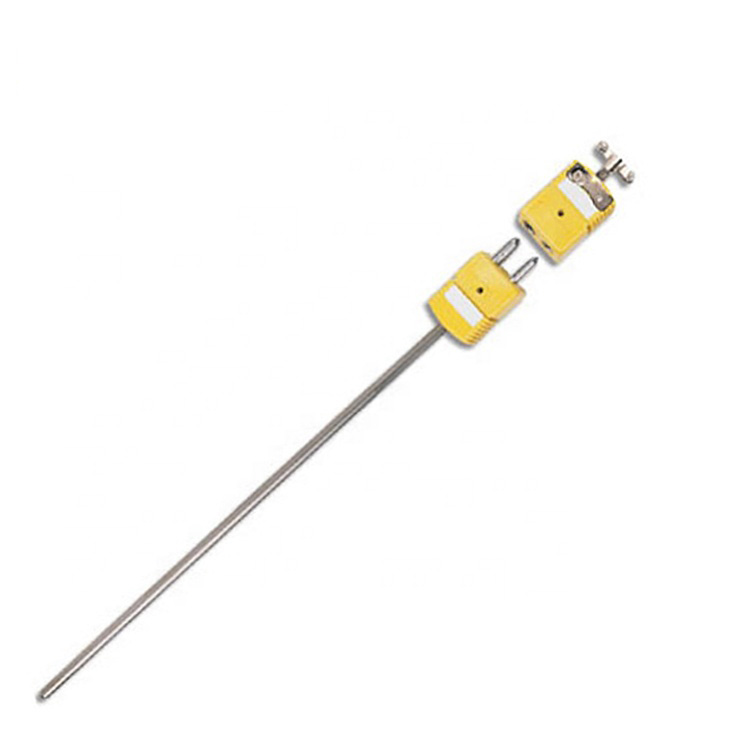

K type Thermocouple Probes Quick Disconnect Probes with Standard Size Connectors

K type Thermocouple Probes Quick Disconnect Probes with Standard Size Connectors
Product description: As a temperature sensor, the K type Thermocouple Probes Quick Disconnect Probes with Standard Size Connectors is usually used with display instruments, recording instruments and electronic regulators.
INQUIRY

As a temperature sensor, the K type Thermocouple Probes Quick Disconnect Probes with Standard Size Connectors is usually used with display instruments, recording instruments and electronic regulators. Thermocouple is temperature connector plug, precision is the temperature of the connecting device, commonly used to line the connection between the recorder and temperature, by a plug and a socket, make temperature test more convenient, quick. Any temperature, can put the temperature line down from the temperature recorder, temperature line protection, the role of thermocouple wire.

Type and graduation

Type	K
Model	WRN-181
Circle diameter	customized
Temperature range	0~+1300C
Tube material	SS310/304/316,inconel600/ceramic
Fixing	screw/flange/none
Cable	stainless/silicone/teflon

Comment:

1, Produce based on client's requirments

2, Methods of fixing: normally without fixing device, but flange or threaded is available

Type K thermocouple is the most widely used compact metal thermocouple at present. Its usage is the sum of other thermocouples. The diameter of K thermocouple wire is generally 1.2mm ~ 4.0mm.
The nominal chemical composition of the positive electrode (KP) is: Ni: Cr=90:10, and the nominal chemical composition of the negative electrode (KN) is: Ni:Si= 97:3, and its operating temperature is -200℃~1300℃.

K Type thermocouple has the advantages of good linearity, large thermoelectric electromotive force, high sensitivity, good stability and uniformity, strong oxidation resistance, low price and so on.

Type K thermocouple cannot be used directly at high temperatures for sulfur, reducibility or reduction, alternating oxidation atmosphere and vacuum, nor is it recommended for weak oxidation atmosphere.
