Type K 304SS sheath Utility Thermocouple Handle Probes

Type K 304SS sheath Utility Thermocouple Handle Probes

Thermocouple Handle Probes
Type K thermocouple
Product description: Type K 304SS sheath Utility Thermocouple Handle Probes is designed for measuring the surface temperature of solid media of various shapes as well as the temperature of liquid and gas. Handle thermocou
INQUIRY

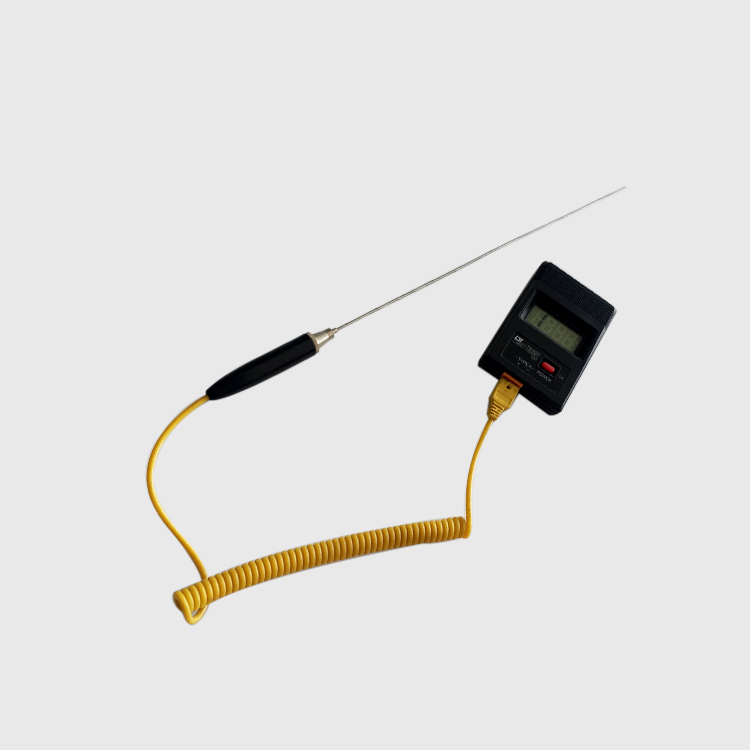

Type K 304SS sheath Utility Thermocouple Handle Probes is designed for measuring the surface temperature of solid media of various shapes as well as the temperature of liquid and gas. Handle thermocouple using range is very wide, not restricted by the shape of the object surface, appearance is lightweight, easy to carry, because the handle thermocouple with small diameter, flexible, heat shock resistance, fast response time and fastening and durable, high reliability, etc. The products are used with digital display, can be directly measured and show the different production within the range of 0 ~ 1200 ℃ in the process of medium temperature

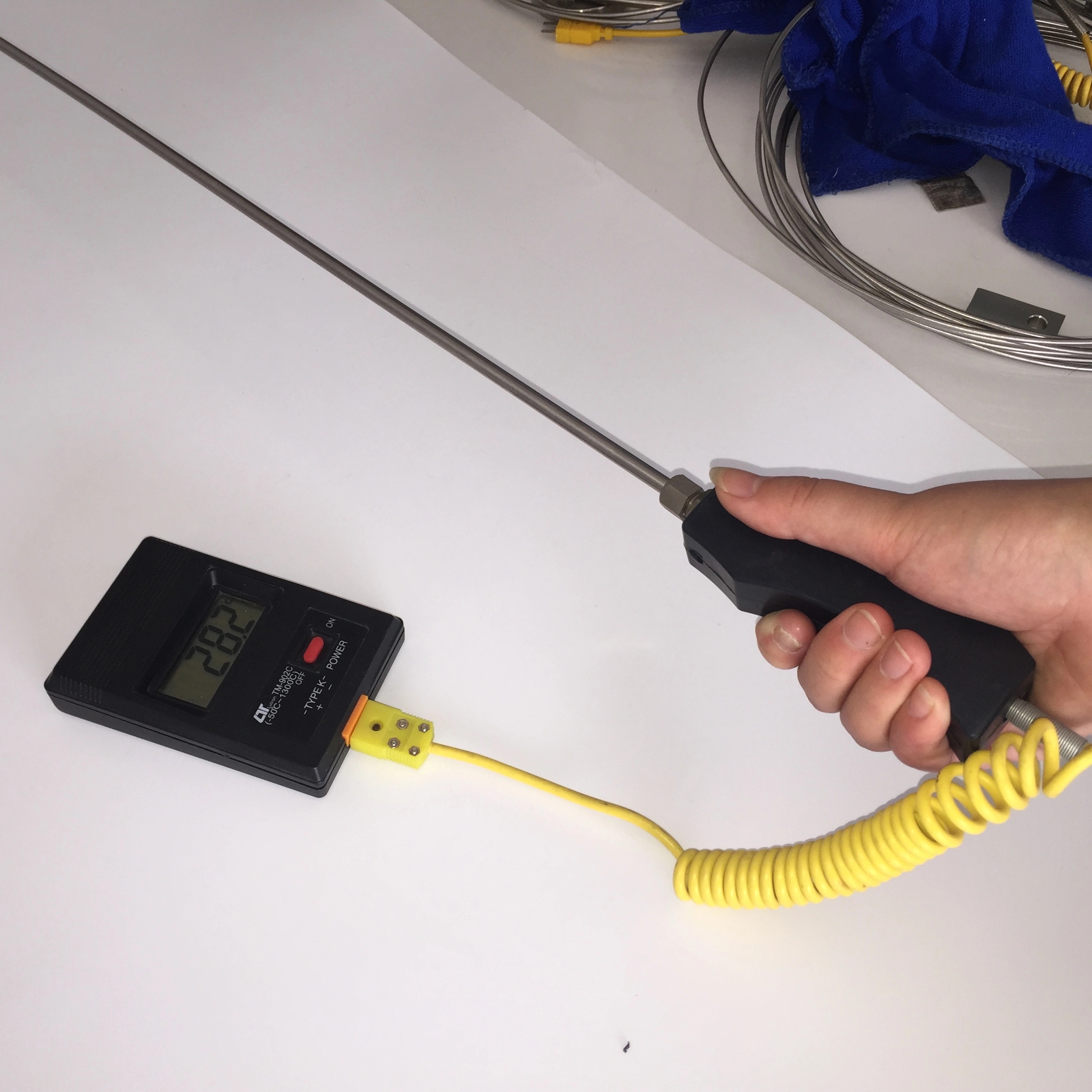

The product is hand-held structure, the gun body and probe can be disassembled at will, long-term use only need to replace the probe. Standard probe length is 330 mm, the gun body length is 1000 mm, probe Ф diameter 6.
Type K 304SS sheath Utility Thermocouple Handle Probes specifications

Model	Graduation	Temperature range	Thermal response time t 0.5s	Protective tube material
WREK-181	E	0-400	<5	Stainless steel 1Cr18Ni9Ti
WRNK-181	K	0-1200	<5	Stainless steel 1Cr18Ni9Ti

Type K 304SS sheath Utility Thermocouple Handle Probes thermal response time:
Step change in temperature, equivalent to the step change is the thermocouple output changes to 50% of the time required to called thermal response time, with the tau 0.5 said.
Thermal response time of handle thermocouple shall not be greater than the following table:

Thermal response time_0.5S	Shell type	Insulation type
Casing diameter (mm)
2.0	0.4	0.5
3.0	0.6	1.2
4.0	0.8	2.5
5.0	1.2	4.0
6.0	2.0	6.0
8.0	4.0	8.0

Type K 304SS sheath Utility Thermocouple Handle Probes Performance features:
1. The temperature cost of each measurement is very low. The average life of the probe is about 700 times, which is more than 2-3 times of the old product and can save 40-50% of the cost.
2. The temperature can reach 1300 ℃, the temperature measurement speed is about 25 seconds fast, the error is less than ±0.4 ℃.
3, can measure electrolyte, aluminum water, copper water, etc., probe is easy to replace, light weight design, beautiful shape, easy to use.
4. Strong chemical corrosion resistance to molten electrolytes, aluminum, copper or other alloys.
