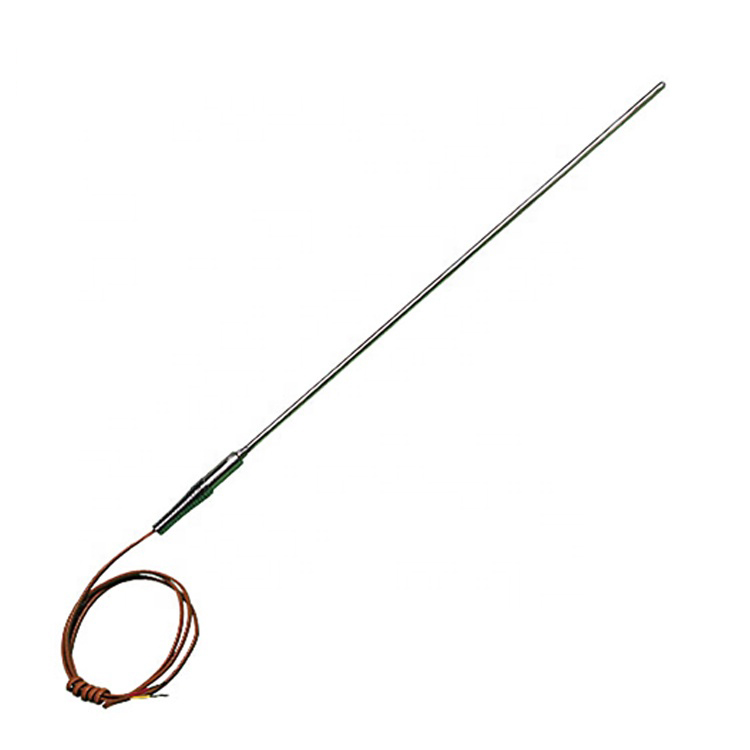

inconel sheath heavy duty transition joint k type thermocouple probe is a kind of temperature sensor. Type K thermocouple is usually used with display instrument, recording instrument and electronic regulator. k type thermocouple nominal chemical composition of the positive electrode (KP) is: Ni: Cr=90:10, and the nominal chemical composition of the negative electrode (KN) is: Ni:Si= 97:3, and the operating temperature is -200℃~1300℃.
inconel sheath heavy duty transition joint k type thermocouple probe has the advantages of good linearity, large thermoelectric electromotive force, high sensitivity, good stability and uniformity, strong oxidation resistance, low price and so on. Type K thermocouple cannot be used directly at high temperatures for sulfur, reducibility or reduction, alternating oxidation atmosphere and vacuum, nor is it recommended for weak oxidation atmosphere.
-
Transition and Wire Rated to 260°C (500°F)
-
Available in 304, 310, 316 & 321 SS or Inconel Sheath
-
Also Available in Super OMEGACLAD™ XL for Stable, Long-Term Operation at High Temperatures
-
Diameters from 1/16 to 1/4 "
-
1 meter (40") PFA Coated Stranded Lead Wire: 20 AWG for 1/4" and 3/16" O.D., 24 AWG for 1/8" and 1/16" O.D. Probes
-
Longer leads are available at $1 per foot over 40 inches
-
Made from Special Limits of Error Material
inconel sheath heavy duty transition joint k type thermocouple probe Advantages
1, High accuracy, good stability
2, Bendable and flexible
3, Fast response, anti-vibration
4, 100% qualified factory test.
