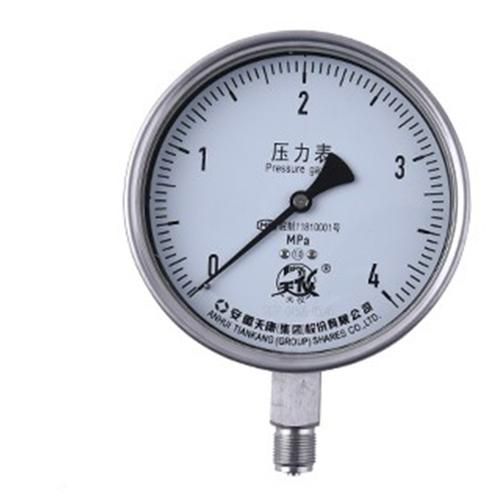

Anhui Tiankang Stainless Steel Pressure Gauge YB-60/YB-100/YB-150 consists of pressure guiding system (includingjoint, spring tube, etc.), gear drive system, indication device and shell. All the components are made of stainless steel. When the spring tube is under the pressure of the measured medium,corresponding elastic deformation will be produced on the pipe end, which is amplified by the gear drive mechanism and the measured pressure value is indicated by the indication device on the dial. The instrument shell is sealing structure which can protect effectively the internal parts from environmental influence and intrusion of filth. Meanwhile, filling oil into the shell is able to resist the pulsation of the measured medium pressure and influence of abrupt vibration of working environment,considering both the resistance to the corrosion and shock.

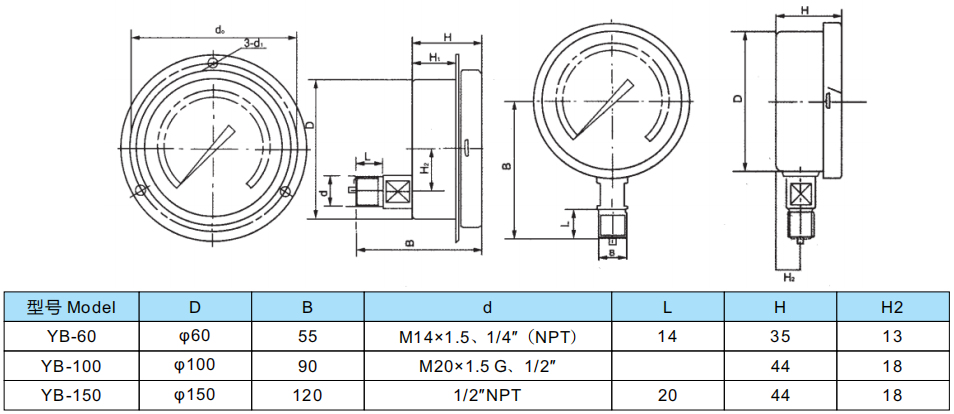

Anhui Tiankang Stainless Steel Pressure Gauge YB-60/YB-100/YB-150 Outline dimension
Anhui Tiankang Stainless Steel Pressure Gauge YB-60/YB-100/YB-150 widely applied to industries like petroleum, chemistry, metallurgy, chemical fiber, etc. They are able to measure the pressure of medium which is strongly corrosive and they can be applied in areas with strong vibration and harsh working environment. The instrument components are all made of stainless steel. The structure of the whole machine is novel in design and fine in process. The instrument has high measurement accuracy, lasting stability and strong operation adaptability. It is ideal supporting product to realize localization of similar type of instrument in imported foreign advanced technology equipment.
