Compact Transition Joint k type Probes Specifications
Thermocouple Type: K or T or pt100
Temperature Rating: 600°C (1,100°F) for type K, 370°C (700°F) for type T,500°C (932°F) for type pt100
Probe Sheath Material: 304 Stainless Steel/316L/GH3030/Inconel serial etc.
Probe Diameter: 3mm (1/8inch) etc(Customizable)
Probe Length: 152mm (6 inches)etc(Customizable)
Thermocouple Junction: Ungrounded (thermocouple element is insulated from sheath wall)

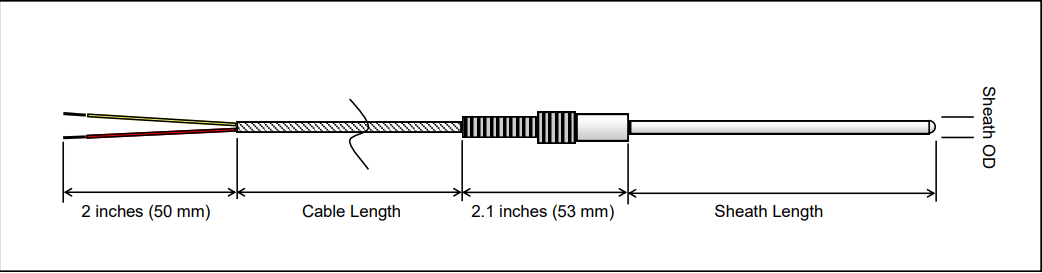

Lead Wire Length: (Includes transition joint): 1,830mm (72 inches)etc(Customizable)
Lead Wire Insulation: PFAetc(matrial Customizable)
Lead Wire Termination: Miniature Male thermocouple connector with strain relief (may be removed for stripped leads)
Mounting Fitting: Included, 1/8"NPT, M10*1,M12*1.5,M20*1.5,etec
Compact Transition Joint k type Probes Features
1. You can choose and customize various types of threads for easy installation on the surface of the equipment4. Fast thermal response time. The outer diameter of the probe can be customized 0.5mm, 1mm, 2mm, 3mm, 4mm, 5mm and so on.

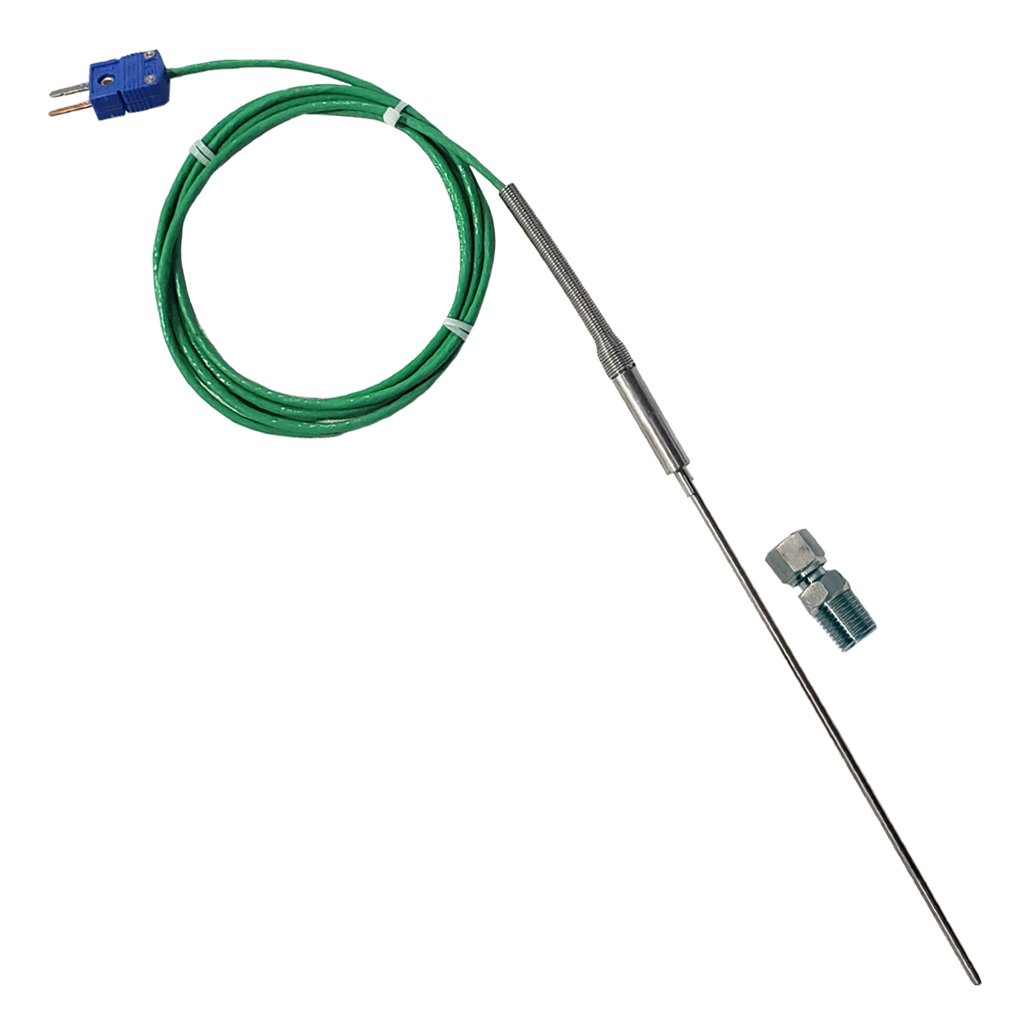

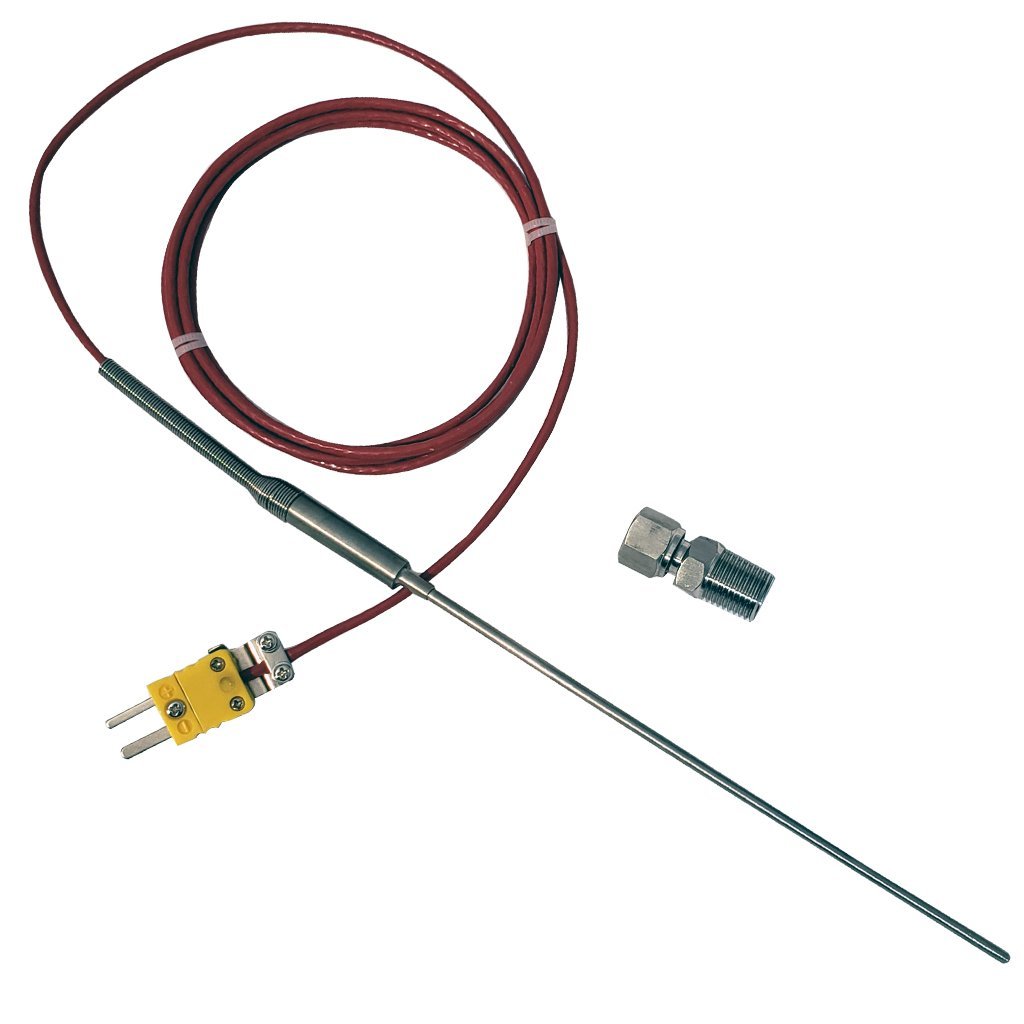

Compact Transition Joint k type Probes PFA Insulated Lead Wire TJ serial WRNK-191 are thermocouple probes with stainless steel sheath and ungrounded junction. The probe provides K-type and T-type thermocouples or PT100. The probe has 304 stainless steel sheath, Inconel alloy, etc., heavy transition joint connecting the probe to lead wire and customizable lead wire, which is terminated in industry standard male plug-in thermocouple connector or bare lead wire,Compact Transition Joint k type Probes PFA Insulated Lead Wire TJ serial WRNK-191.
