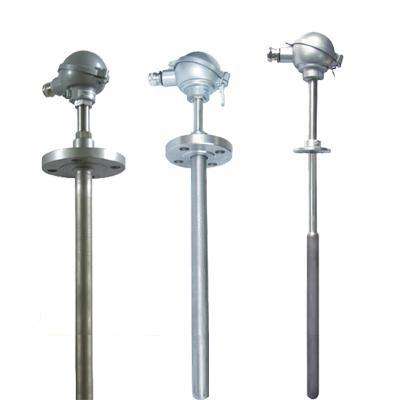

Product description: High temperature wear resistant thermocouple is composed of wear-resistant heads, connecting rods, threads or flanges for mounting and fixing, junction boxes, thermocouple cores or thermocouple wires.
High temperature wear resistant thermocouple is composed of wear-resistant heads, connecting rods, threads or flanges for mounting and fixing, junction boxes, thermocouple cores or thermocouple wires. AnHui TianKang（Group）Shares Co.,Ltd high temperature and wear resistant thermocouples can be divided into the following three types according to the material of the wear-resistant sleeve: 1. Wear-resistant high-temperature alloy: According to the characteristics of high-temperature wear environment, the explosion-proof thermocouple is specially designed for pure alloying. It is a special wear-resistant high-temperature alloy with high temperature resistance and high temperature strength. Made. Less processing defects, high reliability, high temperature strength and wear resistance comprehensive performance, high price, use temperature 800 ~ 1200 ℃. 2. Composite casting wear-resistant alloy: The composite armoring technology is used to add wear-resistant particles to the superalloy matrix, and it is precision melt-casting. No turning is required. The casing has high hardness and high temperature oxidation resistance. The magnetic flap level gauge has a few casting defects but does not affect high temperature abrasion resistance and sealing. 800 ～ 1200 ℃. 3. Ion implantation of tungsten carbide: Tungsten carbide particles are injected on the surface of the casing using ion implantation technology with stainless steel as the substrate. It has high hardness, high strength and high toughness, especially wear-resistant. The thickness of the wear-resistant layer is 0.5 to 1.5mm. The outer diameter is hard and the toughness can be as small as φ8. Service life is more than 2 years. Generally, high temperature and wear-resistant thermocouples are often used in cement plants. It can directly measure three-stage cylinders, four-stage cylinders, five-stage cylinders, three-stage air ducts, decomposition furnaces, kiln tail smoke chambers, kiln head covers, 600 ～ Gas and medium temperature in the range of 1320 ℃. In addition, there is a little trick when using the thermocouple. For places that involve cutting or washing, after using the thermocouple for 60 working days, flip the thermocouple and reinstall it at 90 ° C to maximize the life of the wear-resistant thermocouple. Double it.
