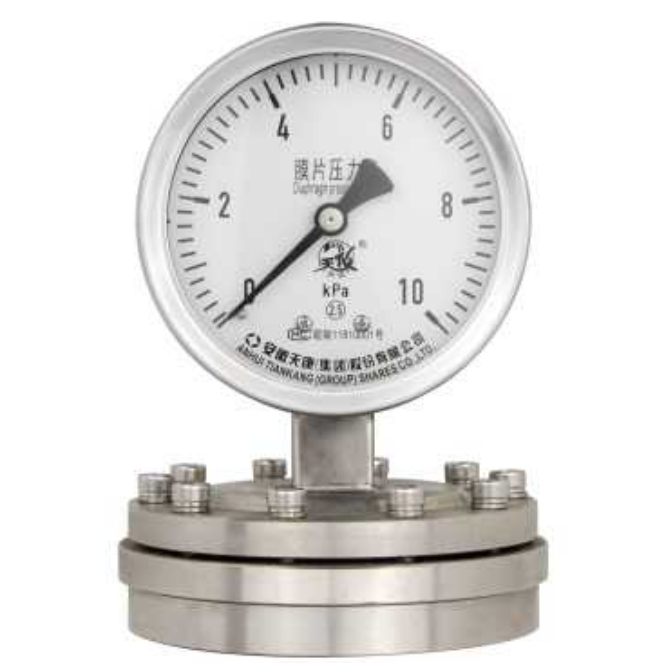

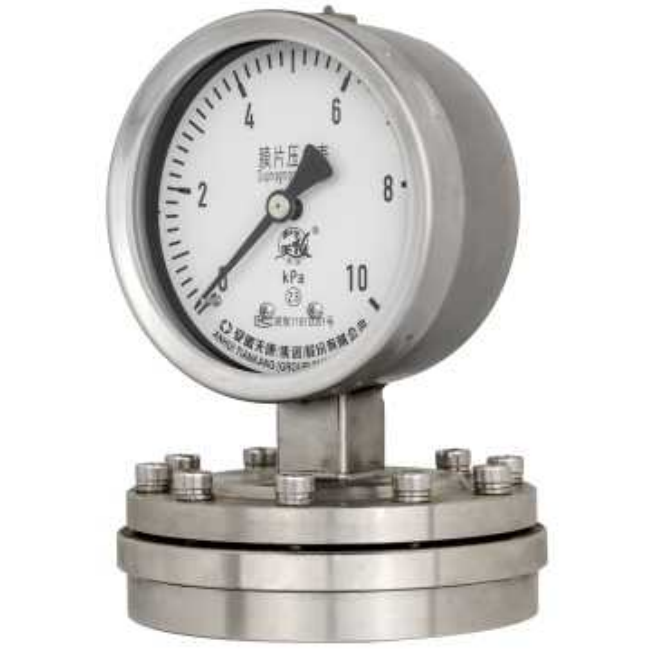

AnHui TianKang Diaphragm pressure gauge YPF

  • AnHui TianKang Diaphragm pressure gauge
  • Diaphragm pressure gauge
  • Product description: AnHui TianKang Diaphragm pressure gauge YPF instrument consists of measuring system (including joint, flange and diaphragm), drive system, indication device and shell. The instrument is the sealing ty
  • INQUIRY

AnHui TianKang Diaphragm pressure gauge YPF instrument consists of measuring system (including joint, flange and diaphragm), drive system, indication device and shell. The instrument is the sealing type with splash-proof structure which is able to protect effectively the internal parts from environmental influence and filth intrusion.With the pressure action of the measured medium the elastic element of the instrument (diaphragm) produces the elastic deformation directly proportionate to the pressure size-- displacement, which is magnified by drive mechanism with the help of connection rod and then the Diaphragm pressure gauge is applicable to measure the pressure or negative pressure of various kinds of fluid medium with certain corrosivity, viscous medium and amorphous or non- coagulated medium. Diaphragm of different materials can be selected depending on the different requirements of the measurement medium for corrosion resistance performance. Anhui TianKang Group instrument whose shell is made from stainless steel can be used in harsh working environment.

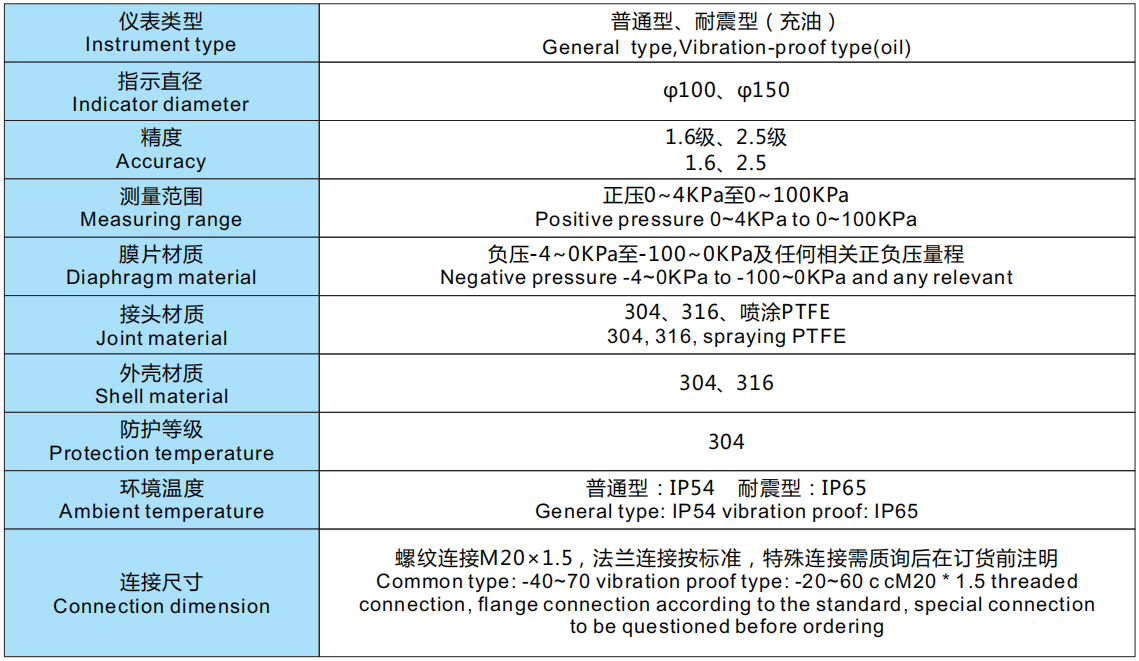

AnHui TianKang Diaphragm pressure gauge YPF Main technical index

AnHui TianKang Pressure Gauge

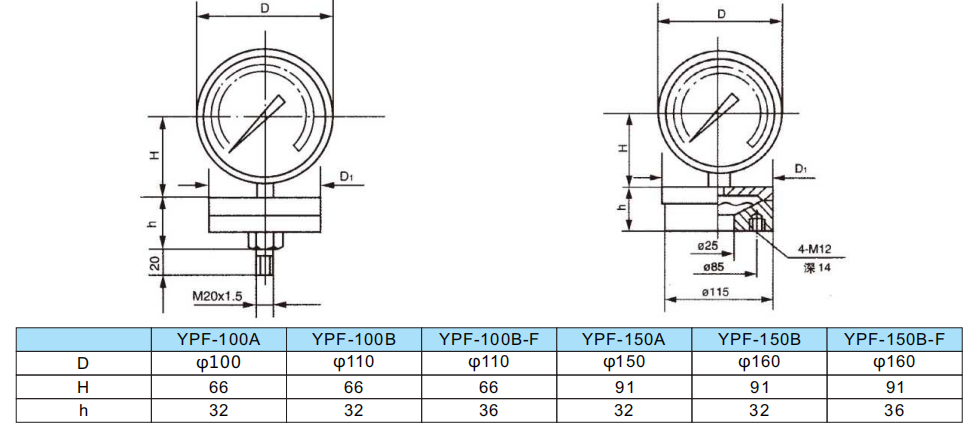

AnHui TianKang Diaphragm pressure gauge YPF Outline size

Pressure Gauge

Type selection of AnHui TianKang Diaphragm pressure gauge YPF




AnHui TianKang Diaphragm pressure gauge YPF

AnHui TianKang Diaphragm pressure gauge YPF
