Bimetallic Thermometer

AnHui TianKang (Group)Shares Co.,Ltd Electric contact bimetal thermometer

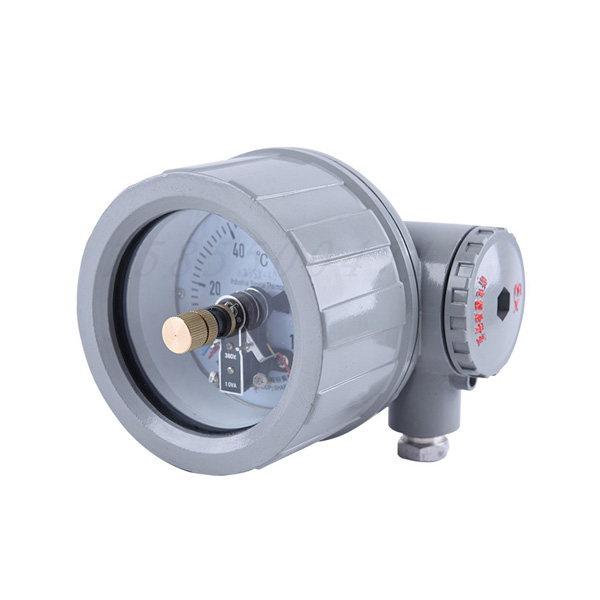

Electric contact bimetal thermometer
bimetal thermometer
Product description: AnHui TianKang (Group)Shares Co.,Ltd Electric contact bimetal thermometer uses the temperature change to drive the contact change. When it is in contact with or disconnected from the upper and lower l
INQUIRY

AnHui TianKang (Group)Shares Co.,Ltd Electric contact bimetal thermometer uses the temperature change to drive the contact change. When it is in contact with or disconnected from the upper and lower limit contacts, the relay in the circuit is activated to automatically control and alarm. The electric contact bimetal thermometer is used in the production site to automatically control and alarm the temperature. Directly measure internal body and steam in the range of -80～500℃ in various production processes
And the temperature of the gaseous medium.
Features of electric contact bimetal thermometer:
· On-site temperature display, intuitive and convenient;
· With automatic power off and alarm functions;
· Safe and reliable, long service life;
· A variety of structural forms can meet different requirements.
Electric contact bimetal thermometer Technical Parameters
· Product implementation standard: JB/T8803-1998 GB3836-83
· Nominal diameter of dial: 100
· Accuracy grade: (1.0), 1.5
· Thermal response time: ≤40S
· Protection level: IP55
· Normal working atmospheric conditions: temperature -25～+55℃, relative humidity ≤85%
· Set point error: The set point error should not exceed 1.5 times the basic error limit.
· Switching difference: Switching difference should not exceed 1.5 times the basic error limit.

· Switching repeatability: The switching repeatability limit range is not more than 1/2 of the absolute value of the basic error limit.
