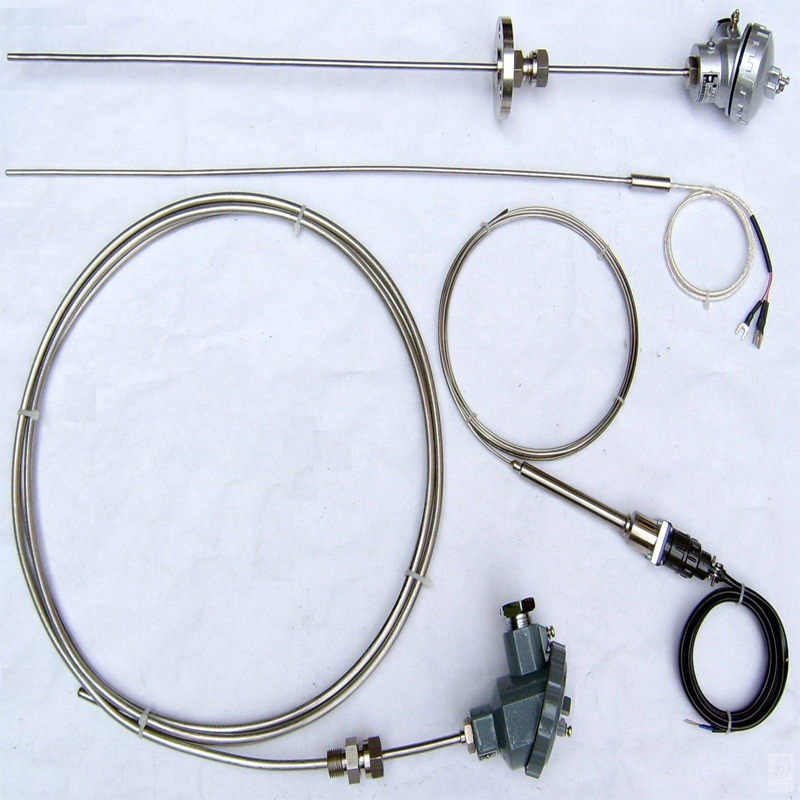

Armored platinum rhodium thermocouple is a kind of traditional temperature measuring element. It is a kind of high temperature measuring element which is easy to bend and has fast thermal reaction time. The diameter of the protective tube is between 3-8mm, and it can measure the temperature in the range of 0-1350 ℃ for a long time. The thermal response time is less than 2S.
Armored platinum rhodium thermocouple standard
Accuracy class: class I or class II
Nominal diameter: F1
Bending radius: R ≥ 5D
Nominal pressure: normal pressure
Armored platinum rhodium thermocouple Model and specification
|
Product name |
model |
Outer sleeve material |
Recommended maximum operating temperature |
|
S-type armored platinum rhodium thermocouple (Platinum Rhodium 10 platinum) |
WRPK |
GH3030 GH3039 Cr25Ni20 |
800-1350Temperature |
|
R-type armored platinum rhodium thermocouple (platinum rhodium 13 platinum) |
WRQK |
GH3030 GH3039 Cr25Ni20 |
800-1350Temperature |
|
Type B armored platinum rhodium thermocouple (platinum rhodium 30-platinum 6) (double platinum rhodium) |
WRRK |
GH3030 GH3039 N10276 |
800-1350Temperature |
Armored platinum rhodium thermocouple order information:
1. Indicate the thermocouple model, graduation number and operating temperature range.
2. Thermocouple points, thermocouple protection tube material, diameter, length, etc.
3. If there are fasteners and flange devices, the first closing dimension shall be provided.
