Armored Thermocouple

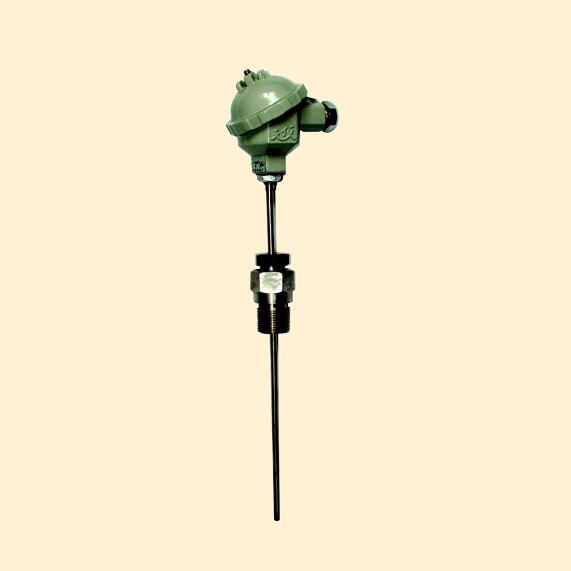

measure bearing temperature thermocouple|bearing thermal resistance WRNT-316T

measure bearing temperature thermocouple
bearing thermal resistance
Product description: measure bearing temperature thermocouple|bearing thermal resistance WRNT-316T produced by our company has a shock-absorbing structure, which can be solid on the surface of the tested bearing, thereby
INQUIRY

Bearing thermocouples are suitable for temperature measurement of bearings with bearing equipment and other occasions where shock resistance is required. measure bearing temperature thermocouple|bearing thermal resistance WRNT-316T produced by our company has a shock-absorbing structure, which can be solid on the surface of the tested bearing, thereby improving the accuracy of temperature measurement.

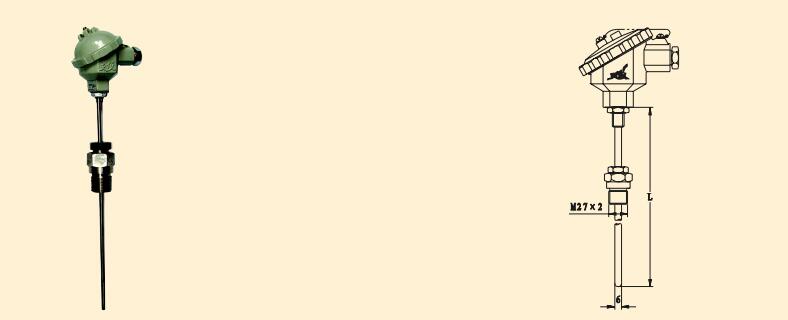

measure bearing temperature thermocouple|bearing thermal resistance WRNT-316T Main technical parameters

1. Electrical outlet: M20*1.5, NPT1 / 2

2. Connection size: M27*2, NPT1 / 2

3. Protection grade: IP65

bearing temperature thermocouple

Model and specification

Model	Graduation	Temperature measurement range ℃	Thermal response time	Gauge diameter	Specification length
WRNT-316T WRNT2-316T	K	0~300	Less than 6S	Φ6	100 150 200 250 300
WRET-316T WRET2-316T	E	0~300	Less than 6S	Φ 6
WZPT-316T	Pt100	0~100	Less than 6S	Φ6
