Pressure gauge with flanged diaphragm seal and a flushing ring

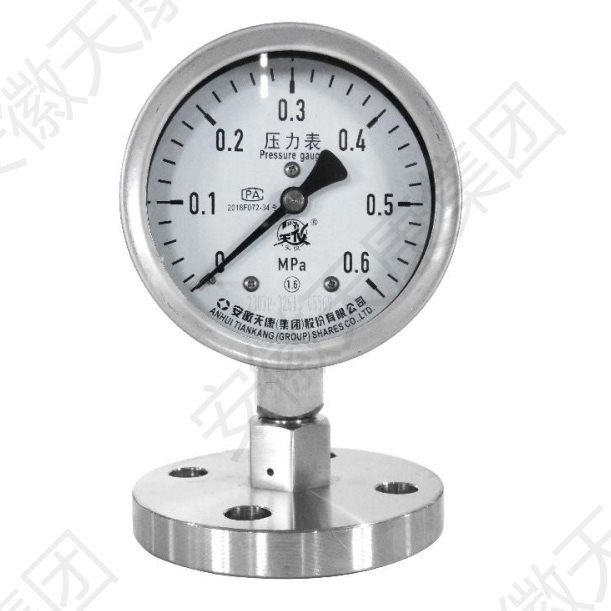

Pressure gauge with flanged diaphragm seal
Product description: Pressure gauge with flanged diaphragm seal and a flushing ring extension of a flanged diaphragm seal system using a flushing ring brings significant advantages. Among other things, it enables easy cle
INQUIRY

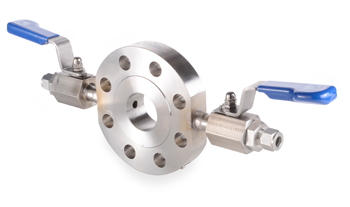

Pressure gauge with flanged diaphragm seal and a flushing ring extension of a flanged diaphragm seal system using a flushing ring brings significant advantages. Among other things, it enables easy cleaning and, in addition, on-site calibration of the measuring location.diaphragm seal systems are available with an optional Flushing Ring. A flushing ring is metal donut-shaped ring installed between the seal and the customer process connection. It is a wetted part. The ring has a port(s) that can be used to flush the surface of the diaphragm during cleaning. The ports are threaded and available in either ¼-inch or ½-inch sizes. The ports are available with extensions to make them easier to reach. The ring may also have ring holders to ensure the entire assembly aligns correctly to prevent leaks.
Pressure gauge with flanged diaphragm seal and a flushing ring common type

1,SS316L flushing ring for mounting between flanges of the diaphragm seal and the isolating valve, with a 1/2" NPT SS316 ball valve.

2,The instrument will consisting of the pressure gauge with flanged diaphragm seal. Diaphragm seal must be attached to pressure gauge, vacuum filled and
tested by Vendor at factory. It will be mounted on the process pipe through a flanged shut-off valve (supplied by others). The flanged seal will have a 1/2" flushing port with plug.

Pressure gauge with flanged diaphragm seal and a flushing ring Applications
For flange-connection diaphragm seals with flush diaphragm or cell-type design
Flushing of process lines to avoid deposits or clogging
Cleaning deposits off diaphragms
Measuring location calibration after separation from the process
Pressure gauge with flanged diaphragm seal and a flushing ring Special Features
Wide choice of special materials
Common standards, nominal widths and flushing connections available
Flushing bores with plug screws
Flushing ring with mounted valves
