Solid Front Pressure Gauge 150 mm Dail Filling Liquid Glycerin Process Connection 1/2" NPT Male Shock-resistant stainless steel pressure gauge relies on measures such as internal filling of damping oil and supporting buffer devices to have good shock-resistant performance. It is suitable for occasions where the pressure of the measured medium has strong pulse changes or pressure shocks and where sudden unloading occurs during the production process; as well as places where the environment is subject to large vibrations. The instrument can measure the average value of the pulsating pressure of gas and liquid to overcome the damage caused by strong pulses of the medium and environmental vibration to ensure the accuracy of readings.

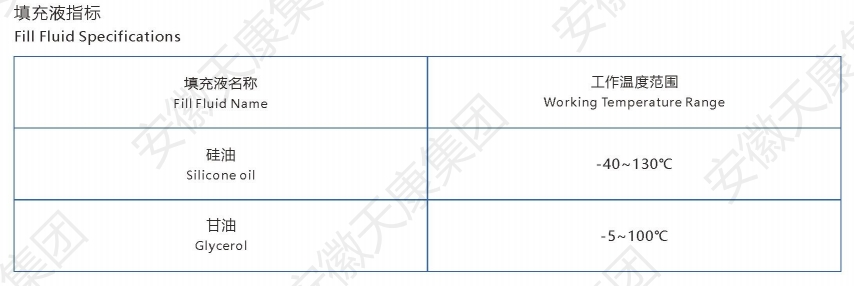

Operating environment temperature: 5~55°C (the case is filled with glycerin), -40~70°C (the case is filled with silicone oil)
Anti-vibration level of working environment: V·H·4, V·H·5;
Shell protection level: IP55, IP65, IP66;
Case material: 304SS, 316SS;
Wetted materials: 304SS, 316SS.
Solid Front Pressure Gauge 150 mm Dail Filling Liquid Glycerin Process Connection 1/2" NPT Male Shock-resistant stainless steel pressure gauge Mounting Accessories

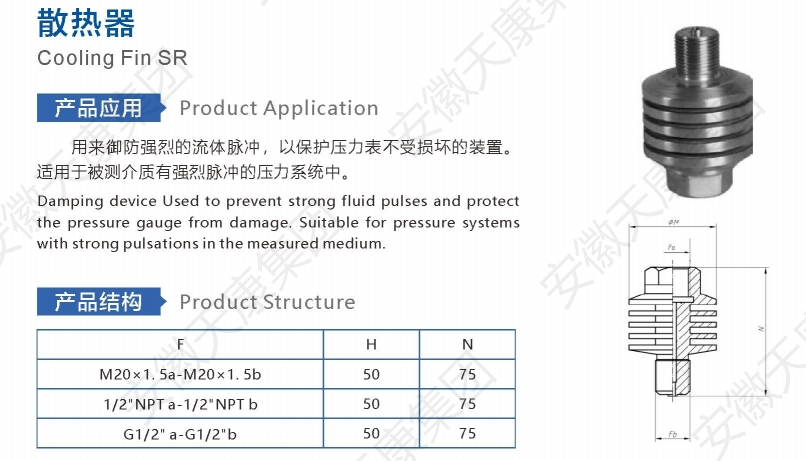

1. Radiator
A device used to resist strong fluid pulses and protect the pressure gauge from damage. It is suitable for pressure systems where the measured medium has strong pulses.

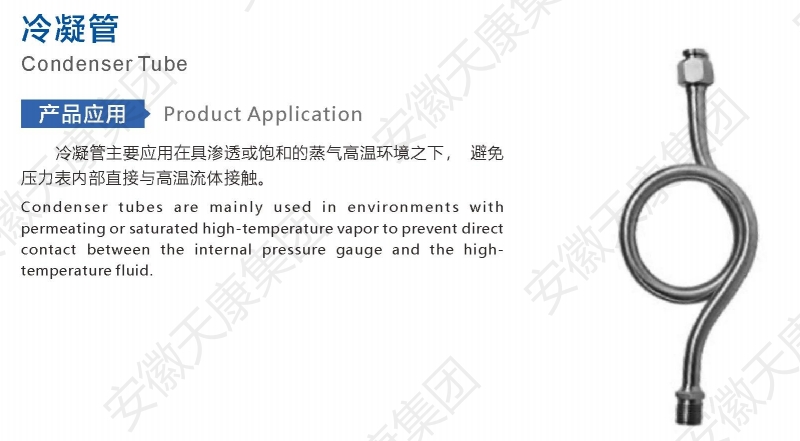

2. Condenser tube
A device used to resist strong fluid pulses and protect the pressure gauge from damage. It is suitable for pressure systems where the measured medium has strong pulses.

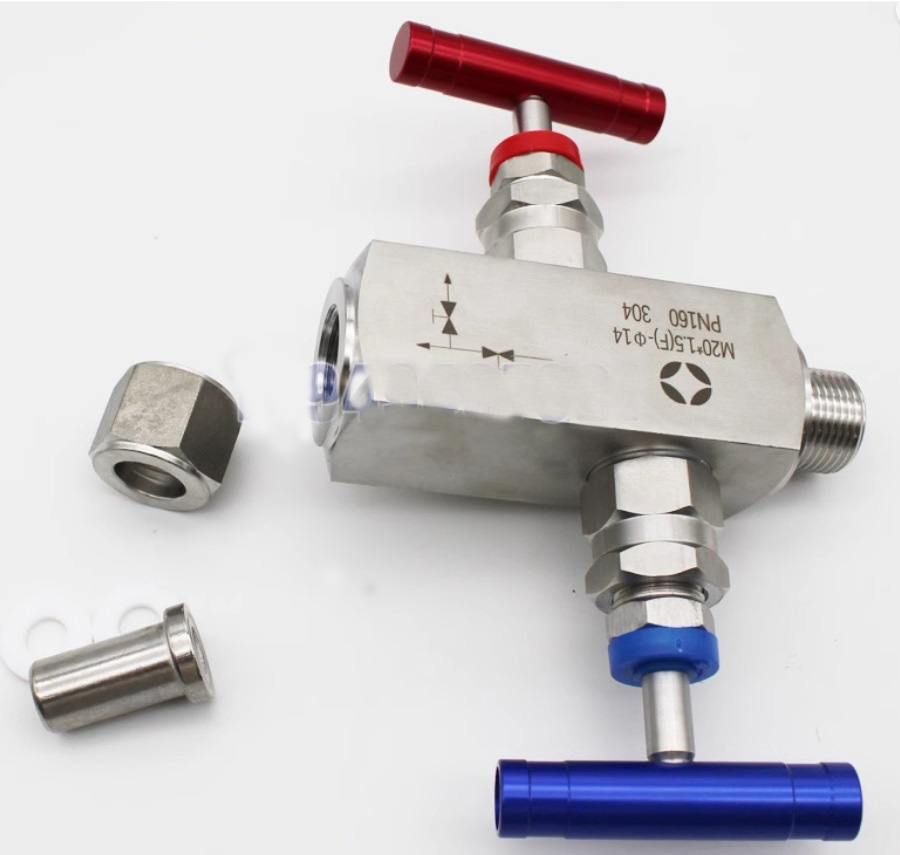

3. Two valve group
The two-valve manifold integrates the three devices of cutting off, calibration and exhaust into one. It has a simple structure and can be directly threaded on the pressure gauge, reducing easy leakage points. It can be installed and used by pressure gauges, pressure sensors or pressure switches.
