Common installation method of thermocouple thermal resistance

Common installation method of thermocouple thermal resistance?There are many installation methods of thermocouple thermal resistance in practical applications. The simplest is directly placed in the hole. Most of them are threaded and flanged connections. Some of the field conditions are bad, and there are thermal installation sleeve connections. These connection methods are large Partly determined by the pressure and temperature measurement medium, let's take a look at the common installation methods of the thermocouple thermistors in the following pictures.
Thermocouple thermal resistance installation
thermocouple rtd

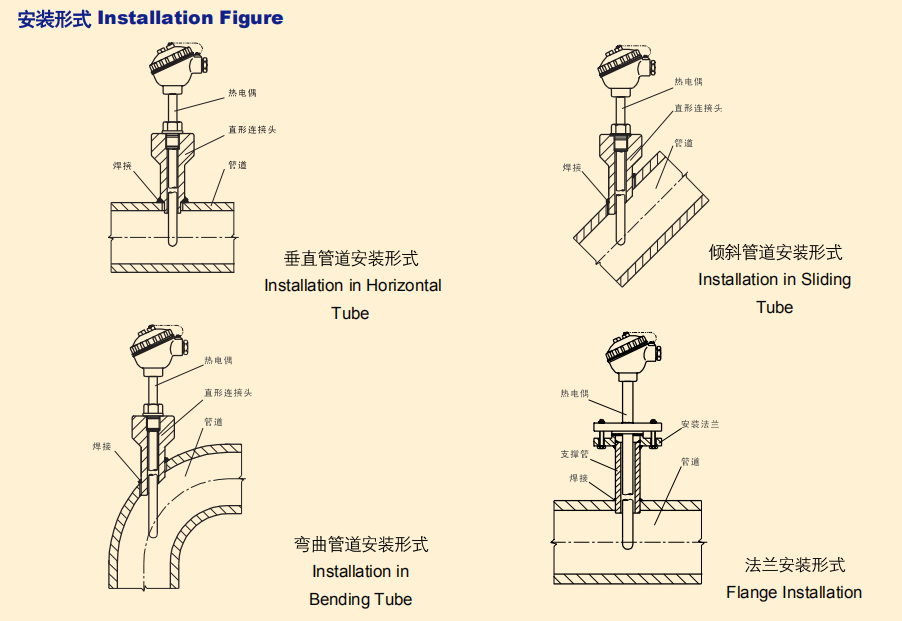

The figure above shows the installation of an armored thermocouple thermistor.
Assembly thermocouple thermal resistance installation
AnHui TianKang(Group)Shares Co.,Ltd
This is the assembly type thermocouple thermal resistance screw connection and flange connection method.
     The common installation methods of thermocouple thermal resistance are roughly the above installation methods. If you have any questions, please communicate with us.
